Water Heater 24" Drain Pan - Galvanized
A square galvanized drain pan for secondary containment beneath a water heater. It collects leakage, condensation and incidental discharge from the heater and its connections.
Mechanical
Tankless Water Heater 20" Sloped Wall-Mount Drain Pan - Galvanized
A wall-mount galvanized drain pan with a sloped base that directs collected leakage toward the drain end beneath a tankless water heater.

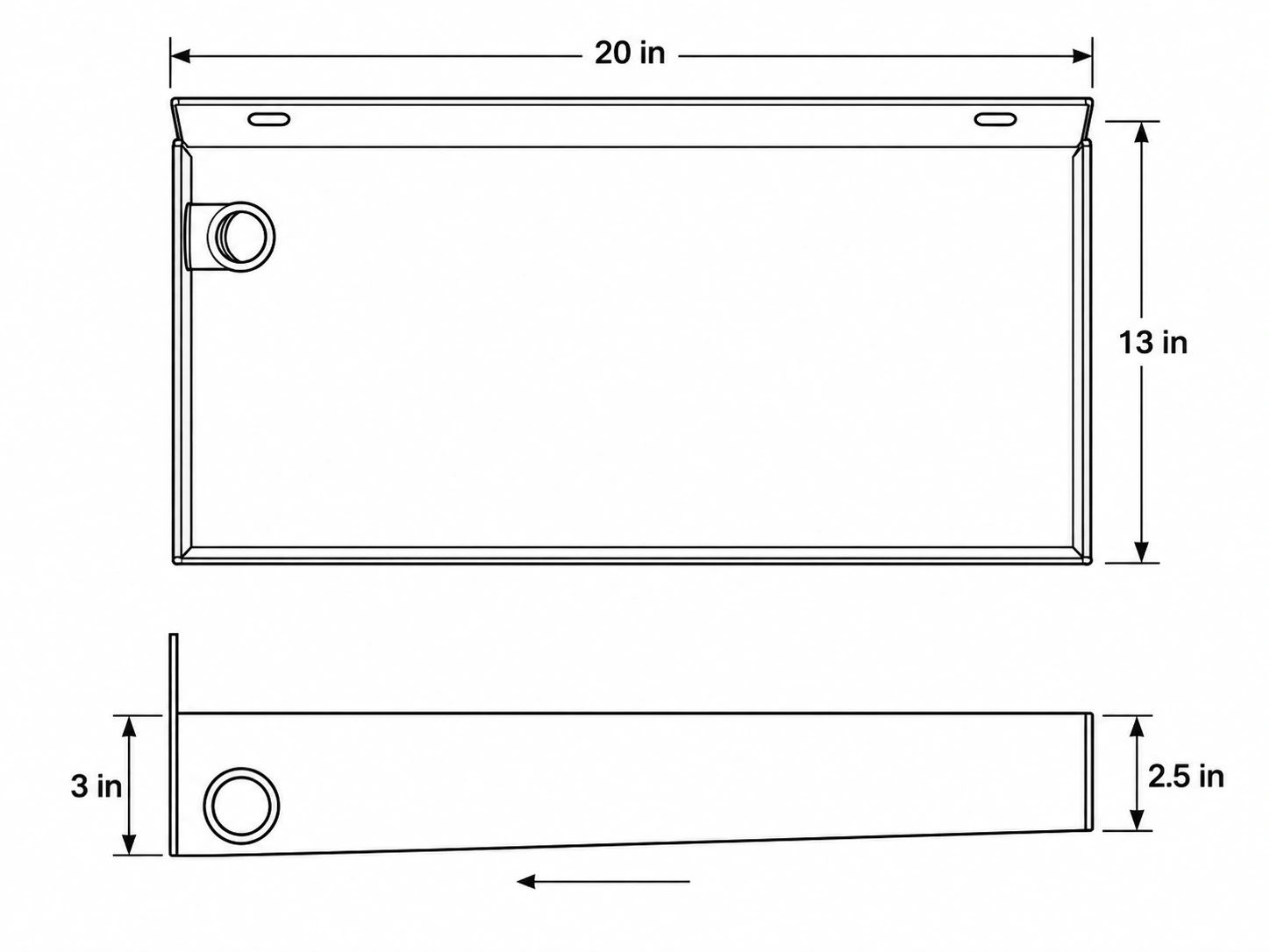

- Pan footprint: 20 in wide × 13 in deep
- Wall-height profile: 2.5 in at one end; 3 in at the drain end
- Material / finish: Galvanized steel / mill finish
Quote-based ordering. Download technical data and installation guidance below.
Add products to your Quote Builder, then send an RFQ for pricing and availability. Adding a product does not place an order.
Product Overview
A wall-mount galvanized drain pan with a sloped base that directs collected leakage toward the drain end beneath a tankless water heater.
Both wall-height values describe the approved sloped profile. Mount below the heater with the drain end unobstructed. No additional slope angle or fitting thread size is specified.
Water heater and installation piping are not included. Confirm appliance fit and the actual drain connection before installation.
Specifications
- Official SKU
- DP-20-GA-C2
- Pan footprint
- 20 in wide × 13 in deep
- Wall-height profile
- 2.5 in at one end; 3 in at the drain end
- Material / finish
- Galvanized steel / mill finish
- Thickness
- 18 gauge / 0.05 in
- Mounting
- Rear wall-mount flange with slotted holes
- Drain opening
- 1.32 in diameter
- Drain fitting
- NPT fitting included
Downloads
Technical Documents
Download the technical data and fillable project submittal for this exact product, plus its shared installation guidance. Save the PDF locally and use a form-capable PDF application to complete the submittal.
Frequently Asked Questions
Where are the technical documents?
Download the technical data and fillable project submittal, plus the applicable shared installation guide, in Technical Documents. Save the PDF locally to complete its form fields in a form-capable PDF application.
How do I request pricing?
Add this official product to your Quote Builder and specify quantities and project requirements. A quote request is not an order.
Have a product question?
Ask about specifications, compatibility, or your project requirements.
